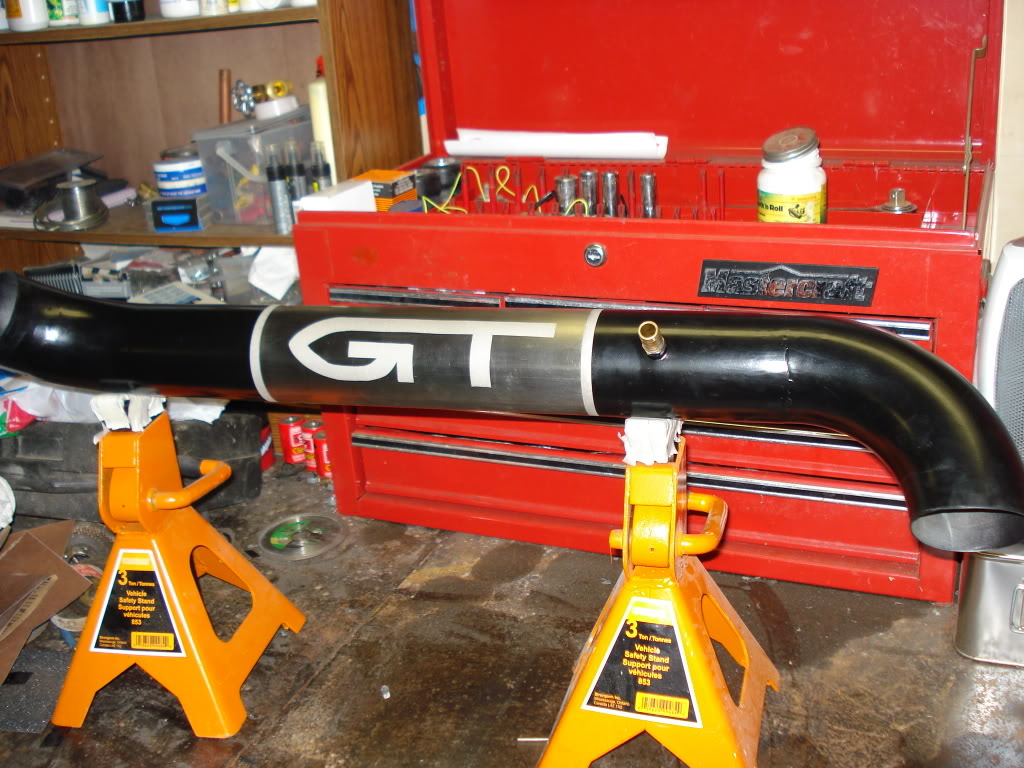

I made this intake 2 years ago, just never had a camera to take pictures. I recently cleaned it up by painting and sand blasting the tube.

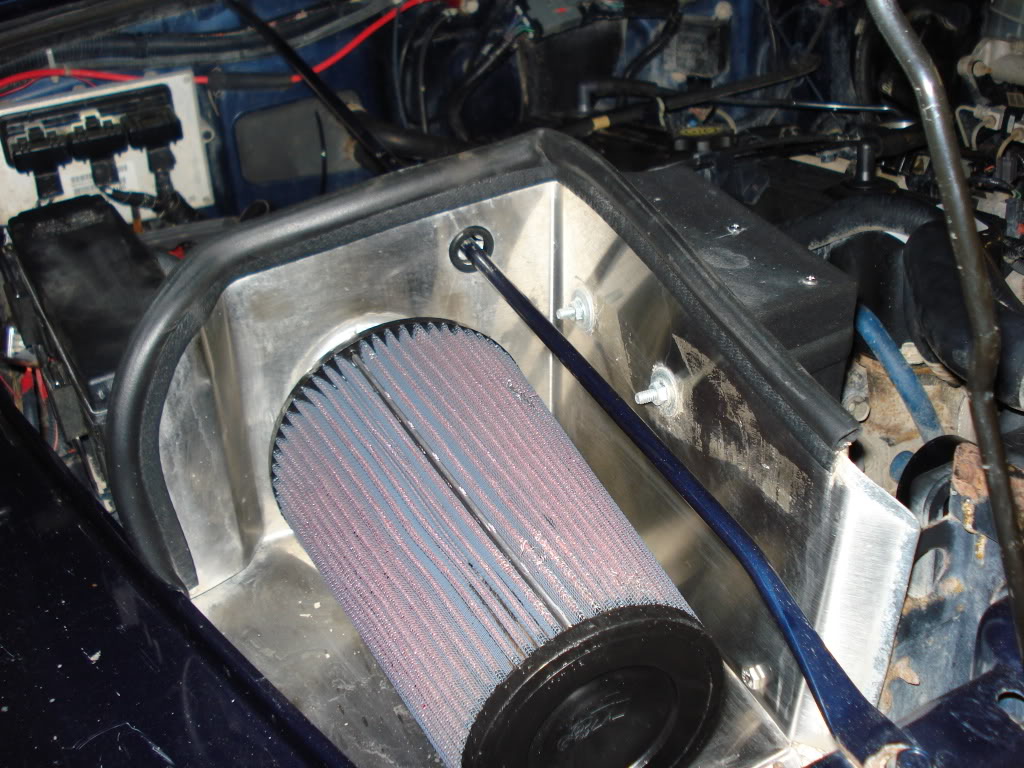

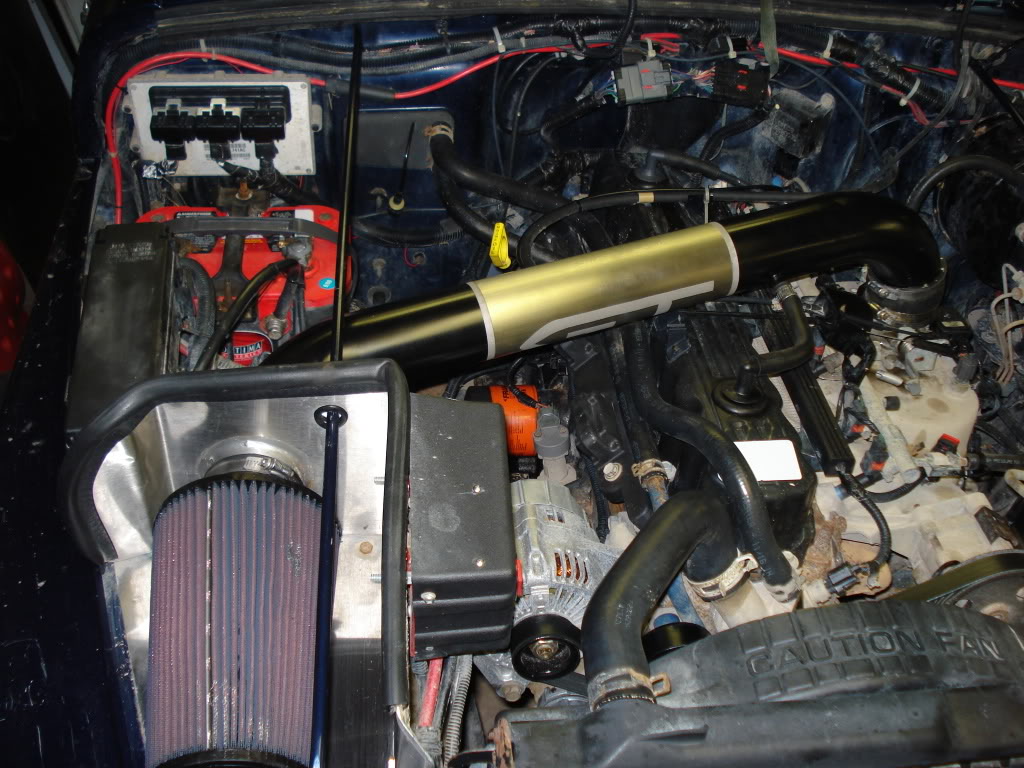

I made the air box a two piece, 18g stainless steel, 3" dia K&N air filter, with a gasket to seal tight to the hood and insulation to keep the engine temps out. The tube is mandrel bent 3" dia stainless steel and the throttle body is 62mm dia.
It works great, increase in fuel mil' and gives a great throttle response.






Good to see the forum is up and running.



looks good man, i wanna get one for my mustang, if you wanna make a few bucks we can talk when i get the car from storage and see how much youd want for one :)
